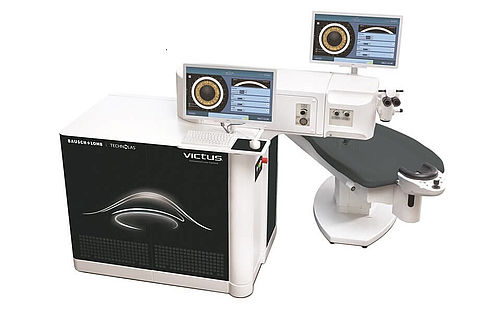

VICTUS® Femtosecond Laser Platform – THERAPEUTICS

A range of therapeutic indications are available on the VICTUS Femtosecond Laser:

Penetrating Keratoplasty (PKP), Lamellar Keratoplasty (LKP), tunnels for intrastromal corneal ring segments and pockets for crosslinking.

For all of the therapeutics indications, the VICTUS provides:

  • Intuitive treatment planning
  • OCT supported docking
  • OCT supported alignment
  • Live OCT visualization throughout the laser treatment
FURTHER INFORMATION THERAPEUTIC INDICATIONS

Penetrating Keratoplasty (PKP)

The curved patient interface reduces distortion of the cornea, resulting in a good fit of donor and recipient tissue.

  • Partial rim-cuts possible
  • Online pachymetry adjustment via OCT
  • Full view of cornea
  • Diameter: 3.0 – 9.5 mm
  • Depth: 120 – 1500 μm
  • Full OCT visualization of the entire procedure

Lamellar Keratoplasty (LKP)

  • Live cross-sectional OCT scans (simultaneous display of 0º and 90º scans)
  • Depth: 120µm to 600µm
  • Diameter: 3.0mm to 9.5mm
  • Online pachymetry and cutting depth adjustment via OCT
  • Full OCT visualization of the entire procedure

Tunnels for Intrastromal Corneal Ring Segments (ICRS)

The curved patient interface acts like a hard contact lens, allowing the tunnels to be prepared at a consistent depth using the pre-programmed diameter.

  • Suitable for all types of ring segments
  • 360º tunnel, single partial tunnel, double partial tunnels
  • Individual tunnel settings: length, width
  • Online pachymetry and cutting depth adjustment via OCT
  • Full OCT visualization of the entire procedure

Pockets for Corneal Crosslinking (CXL)

  • Depth: 110µm to 220µm
  • Diameter: 6.0mm to 9.5mm


Legal Manufacturer: Technolas Perfect Vision GmbH

Bausch & Lomb Canada, Vaughan, Ontario, L4K 4B4
®/™ are trademarks of Bausch & Lomb Incorporated or its affiliates.
© 2020 Bausch Health, Canada Inc.

Therapeutics

Please contact your Bausch + Lomb representative for more information
